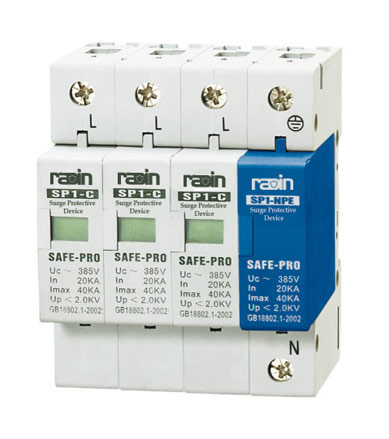

SP1-NPE Neutral earthing protection module ( brief as NPE) suitable for TT, TN-S power supply system with AC 50/60Hz, rated voltage 400V, used between Neutral line and Earthing line, make surge protection caused by indirect lightning and direct lightning or other instant over voltage. And can assembly with SP1-C, SP1-D series SPD to form the combination of 1P+NPE, 3P+NPE etc., as to improve the anti-surge performance.

Standard:GB18802.1, GB18802.12, IEC61643-1, IEC61643-21, UL1449 ed.

NPE use gas discharge tube or air gap discharge as main execute component, normally it shows high resistance status, when there is surge in power grid due to indirect and direct lightning or other instant over voltage, the electrode will breakover within nanosecond grade time, to lead the surge to earth, and protect the electric equipment in the power grid, after the surge across NPE, it recover to high resistance status again, and no influence to the normal running of power grid.
